201 series,Parking space 2 way guidance indoor led display in an important fork in the parking lot. Receive the output information of the concentrated controller, display the number of empty parking spaces in the area in the form of numbers, arrows, and guide car owners to quickly find the empty parking spaces to ensure the smoothness of the parking lot and the full use of parking spaces.

Specifications:

Communication：RS-485
Communication Baud Rate：9600BPS,8,N,1
Display Color：Green/Red
Lots Number：3 digits
Input Voltage：AC220V
Working Temp：-20℃~+70℃
Storage Temp:-40℃~+85℃
Working Humidity：30%~90%
Rated Power：6.5~7.5W
Dimensions：1370*270*75mm 2 way
Application：Indoor/Parking lot guidance

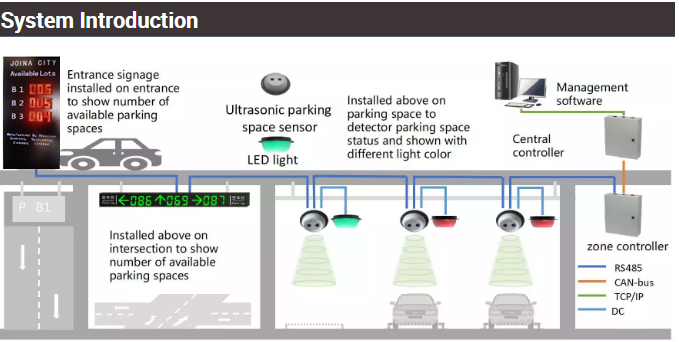

Wiring Diagram:

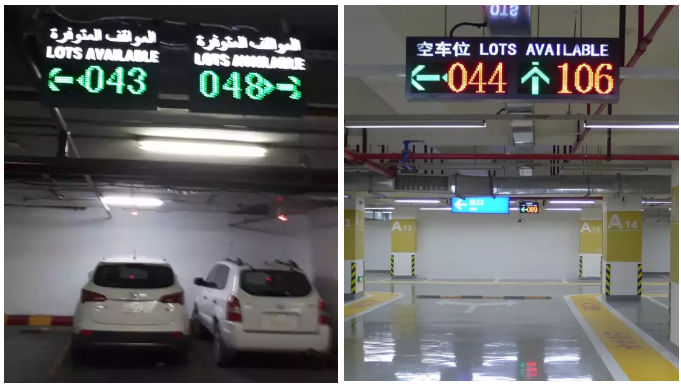

Application Scenarios:
